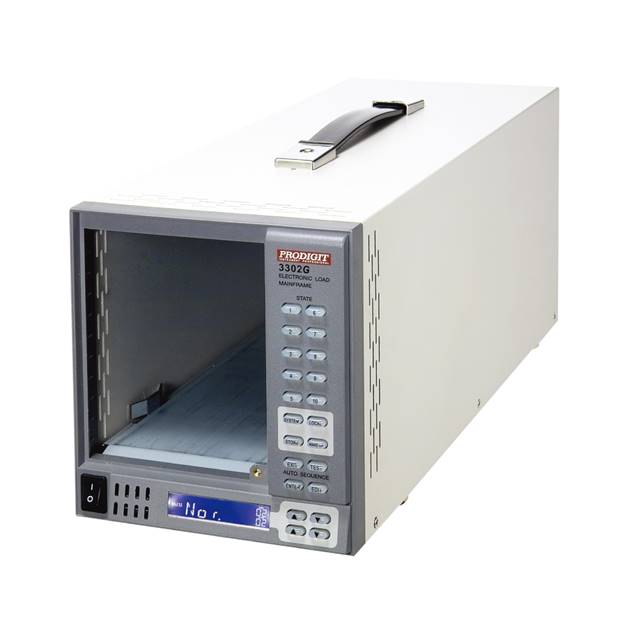

3302G Single Channel Mainframe

Description

l 3300G is a 4 Channels 1200W Mainframe which accepts up to four 3310G / 3310F series Load Module.

l 3300F is a 4 Channels 1200W Mainframe which accepts up to four 3310F series Load Module.

l 3300C is a 4 Channels 1200W Mainframe which accepts up to four 3310D / 3250A / 3330A series Load Module.

l 3301A is a 4 Channels 1200W Mainframe which accepts up to four 3320 series Load Module.

l 3305G is a 2 channels 600W Mainframe which accepts up to two 3310G / 3310F series Load Module.

l 3305F is a 2 channels 600W Mainframe which accepts up to two 3310F series Load Module.

l 3302G is 300W Mainframe which accepts any single 3310G / 3310F series Load Module.

l 3302F is 300W Mainframe which accepts any single 3310F series Load Module.

l 3302C is 300W Mainframe which accepts any single 3310D / 3320 / 3250A / 3330A series Load Module.

l 3300G and 3300F and 3300C include the built-in 150 states Store/Recall key or an Optional Remote controller provide user friendly one key operation for quick recall of previous stored data from all Load Modules. GPIB, RS-232, USB, LAN address is needed to control all Modules remotely.

Features

Accept 3310Ｇ Series DC Electronic Load Module

Accept 3310F Series DC Electronic Load Module

Flexible Load Module configuration

include 150 states Store / Recall Memory

External Recall key

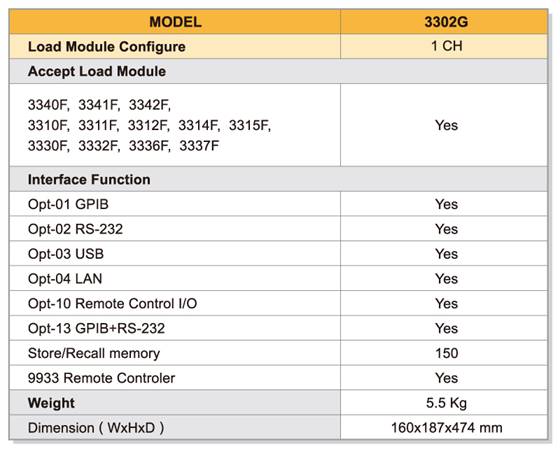

Specifications
